KEY - visualizing evolution

Author

Your Name

Published

January 21, 2026

Note

This template follows the visualizing evolution slides. Please be sure to cross-reference the slides, which contain important information and additional context!

Setup

Note

{tidycensus} functions (e.g. get_estimates()) internally call Sys.getenv("CENSUS_API_KEY) to retrieve your key from .Renviron. This means you don’t need to explicitly call Sys.getenv("CENSUS_API_KEY) in your code – {tidycensus} handles that for you!

##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
##                                    setup                                 ----
##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

#.........................load libraries.........................
library(tidycensus)
library(tidyverse)
library(gghighlight)

#..........................import data...........................
lyme <- read_csv(here::here("week3", "data", "2023_CaseIncid-Lyme-Disease-Cases-by-State-or-Locality.csv"))

##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
##                          wrangle lyme disease data                       ----
##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

#....................wrangle lyme disease data...................
lyme_clean <- lyme |>

  rename(state = State) |>

  # remove special character from State names that have it ----
  mutate(state = str_replace(string = state, pattern = "\x86", replacement = "")) |>

  # remove total cases row ----
  filter(state != "U.S. Total") |>

  # wide to long (tidy) years ----
  pivot_longer(cols = 2:16, names_to = "year", values_to = "reported_cases") |>

  # reorder columns ----
  relocate(year, state, reported_cases) |>

  # filter for years 2010 - 2020 ----
  filter(year %in% c(2010:2020))

##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
##                          get & wrangle census data                       ----
##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

#........get pop estimates by state using tidycensus API.........
us_state_pop <- get_estimates(geography = "state",
                              product = "population",
                              state = NULL,
                              year = 2019) |> # request 2019 vintage for the 2010s (see documentation)
  filter(variable == "POP") |>
  select(state = NAME, population = value) |>
  filter(state != "Puerto Rico")

#........................write data to csv.......................
# OPTIONAL, but recommended in case you want to work offline, the API is down, etc. (you can then read in your saved data file rather than run the above code)
# write_csv(us_state_pop, file = here::here("week2", "data", "us_state_pop.csv"))

##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
##                            join lyme & pop dfs                           ----
##~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

lyme_pop <- left_join(lyme_clean, us_state_pop) |>

  # add col with num of 100k people per state ----
  mutate(pop100k = population/100000) |>

  # calculate num cases per 100k people (common way of reporting disease incidence) ----
  mutate(cases_per100k = reported_cases/pop100k)

Line graphs

  • show evolution of one or more numeric variables; similar to scatter plots but points are ordered (typically by x-axis value) and joined with straight line segments

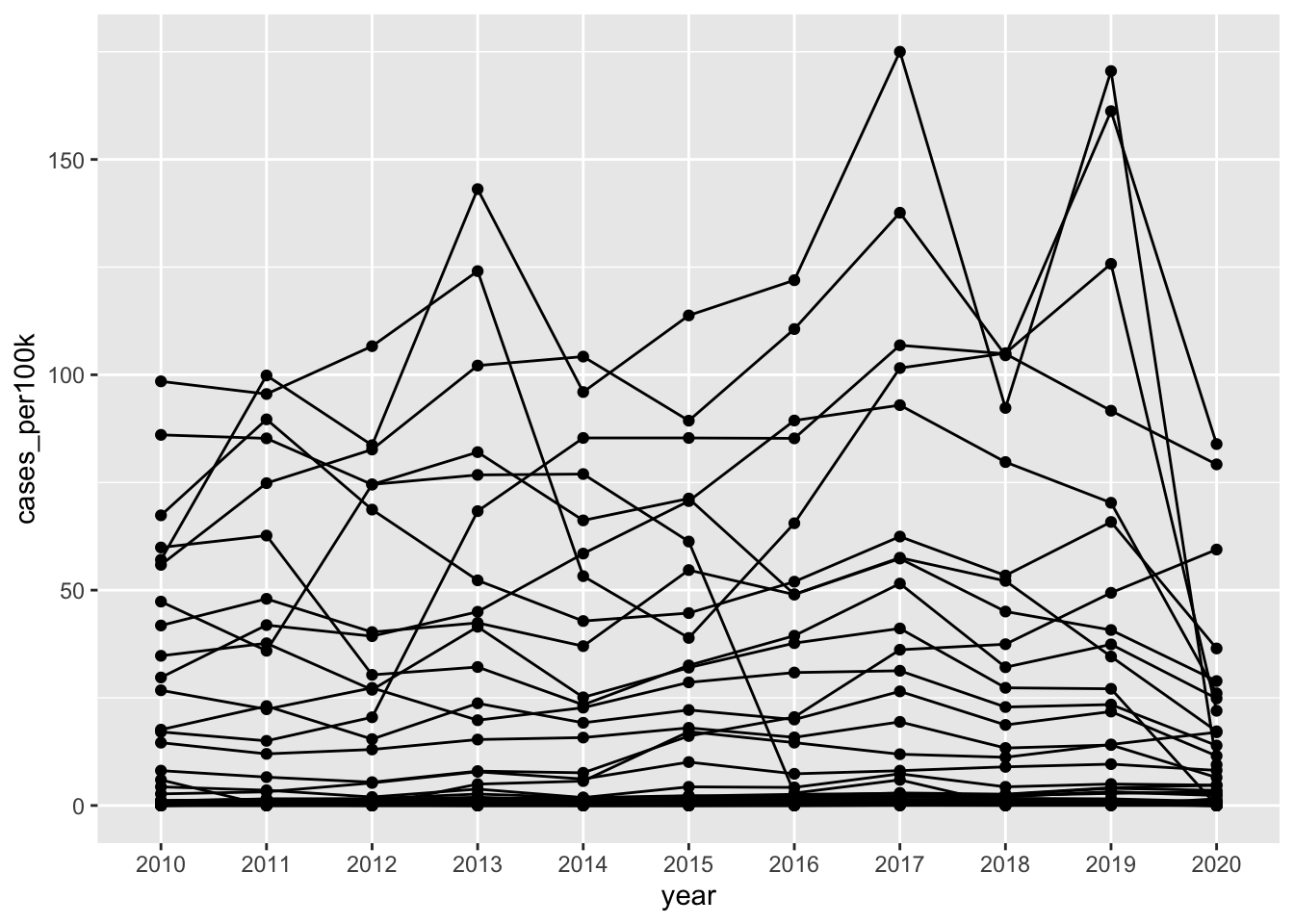

# line chart ----
ggplot(lyme_pop, aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  geom_point()

Avoid spaghetti plots

  • highlight groups or values of interest to focus attention

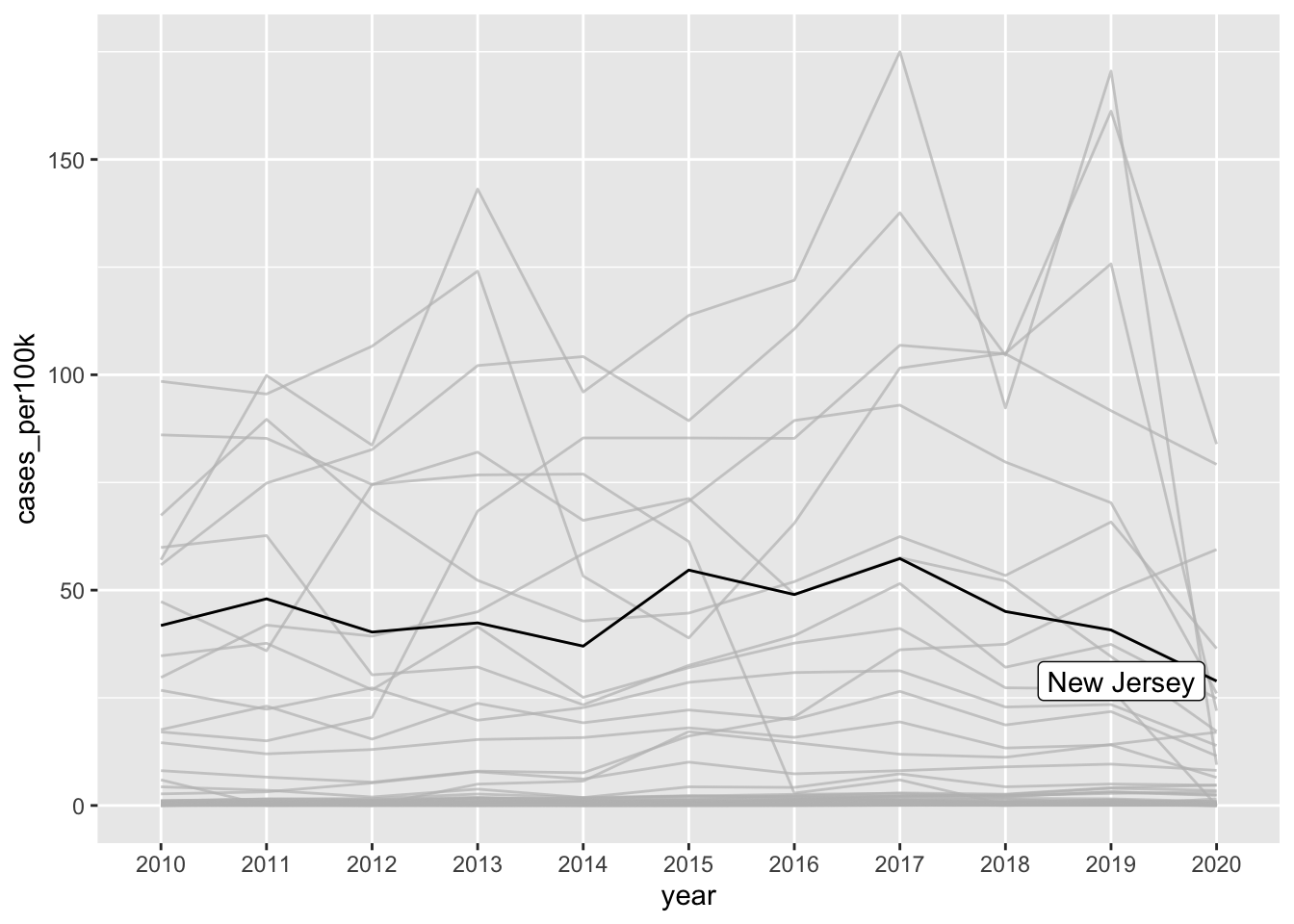

# highlight one group ----
ggplot(lyme_pop, aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  gghighlight::gghighlight(state == "New Jersey")
# highlight based on criteria ----

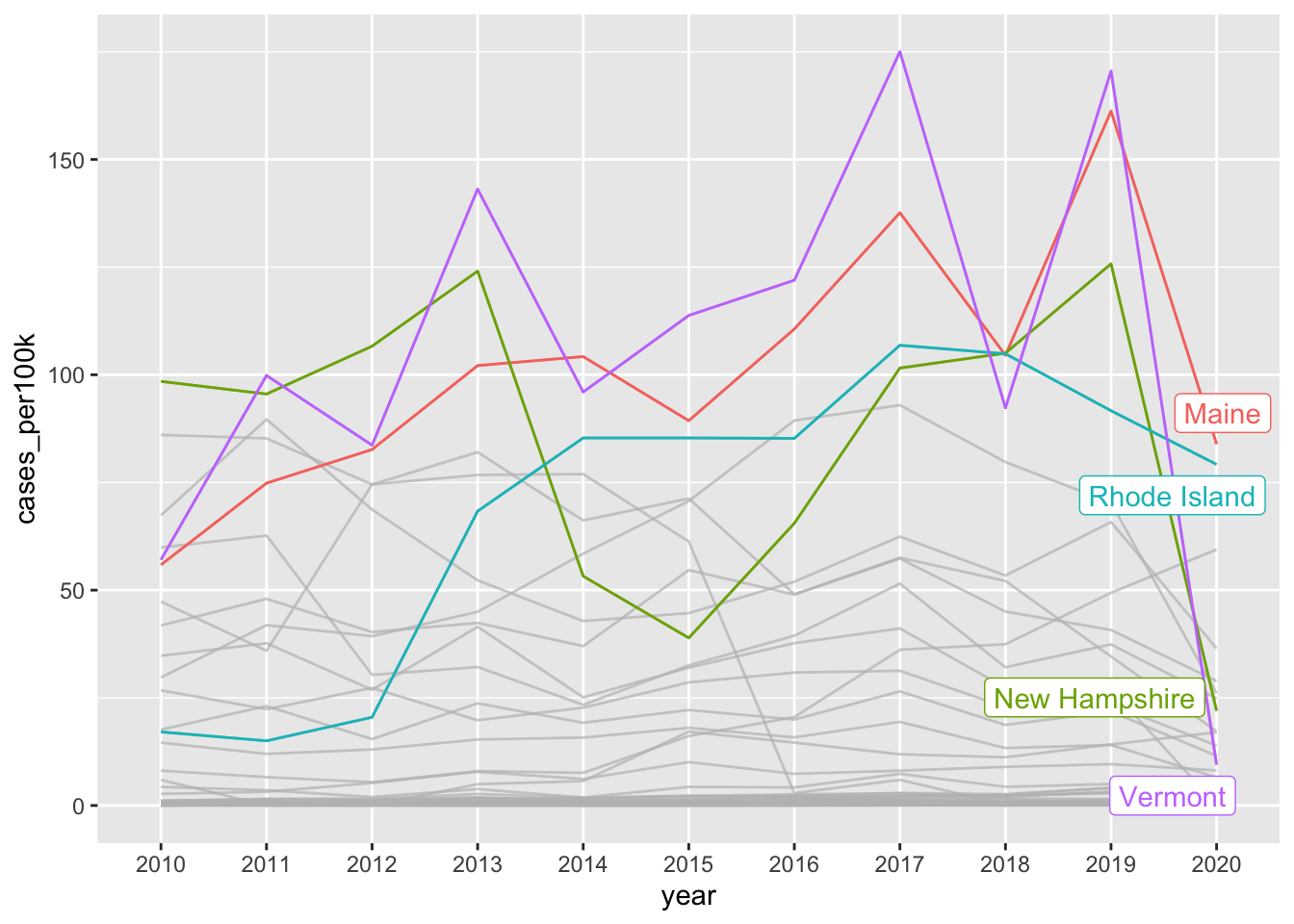

ggplot(lyme_pop, aes(x = year, y = cases_per100k, group = state, color = state)) +
  geom_line() +
  gghighlight::gghighlight(max(cases_per100k) > 100)

Note 1: It’s okay to cut the y-axis

  • line graphs encode data by position and not length
# ggplot cuts y-axis by default ----
lyme_pop |>
  filter(year %in% c(2013:2019)) |>
  filter(state == "Vermont") |>
  ggplot(aes(x = year, y = cases_per100k, group = state)) +
  geom_line()

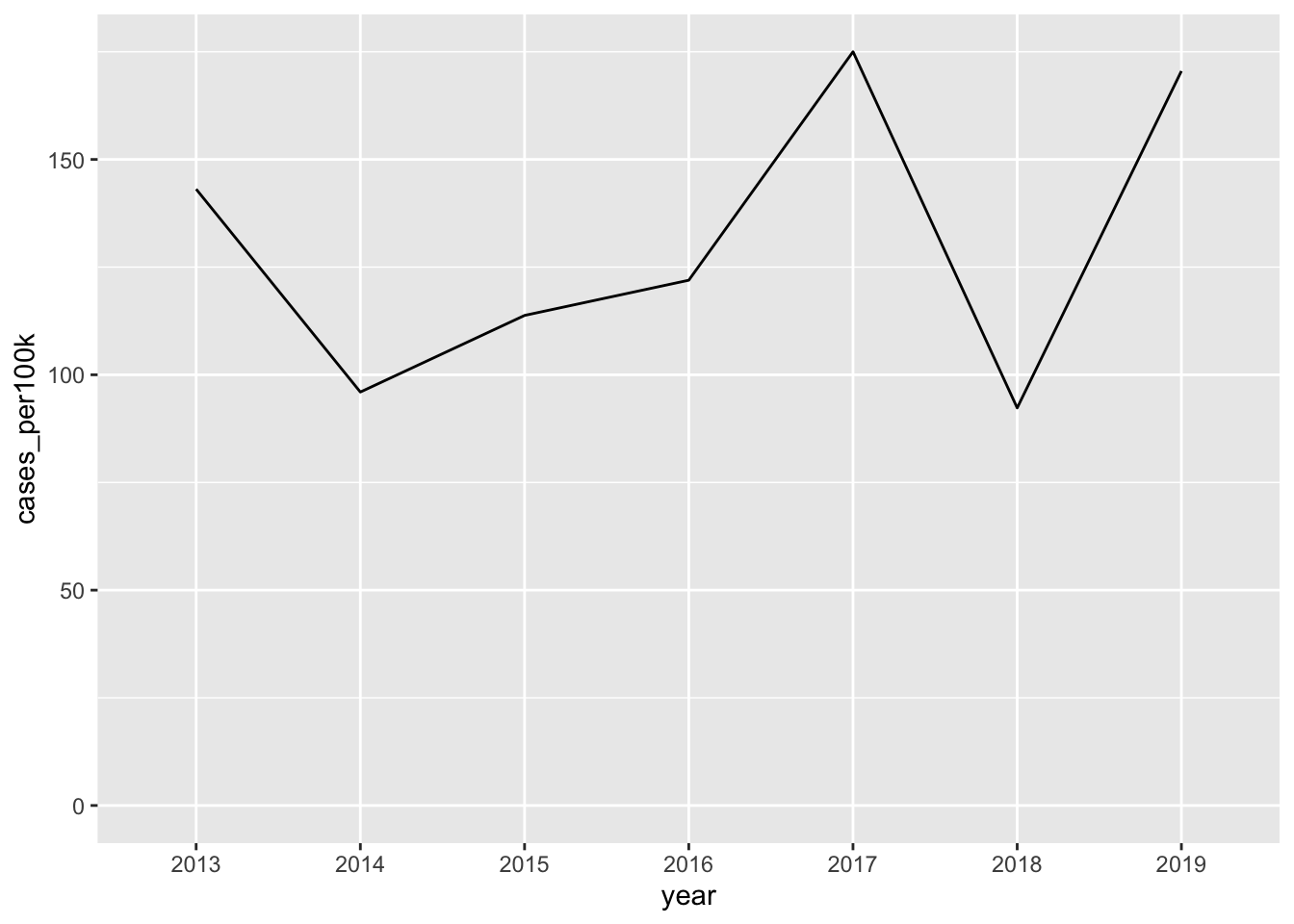

# force y-axis origin at 0 ----
lyme_pop |>
  filter(year %in% c(2013:2019)) |>
  filter(state == "Vermont") |>
  ggplot(aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  scale_y_continuous(limits = c(0, NA))

Note 2: Consider aspect ratio (height:width ratio)

Note

We’ve added tick marks for every value on the y-axis on the plot below to help visualize differences in aspect ratio – you would not typically present a plot in this way

  • here, 10 units on our x-axis (years 2010 - 2020), and ~175 units (case_per100k 0 to ~175) on our y-axis
  • ggplot automatically adjusts aspect ratio so that plot is easier to read

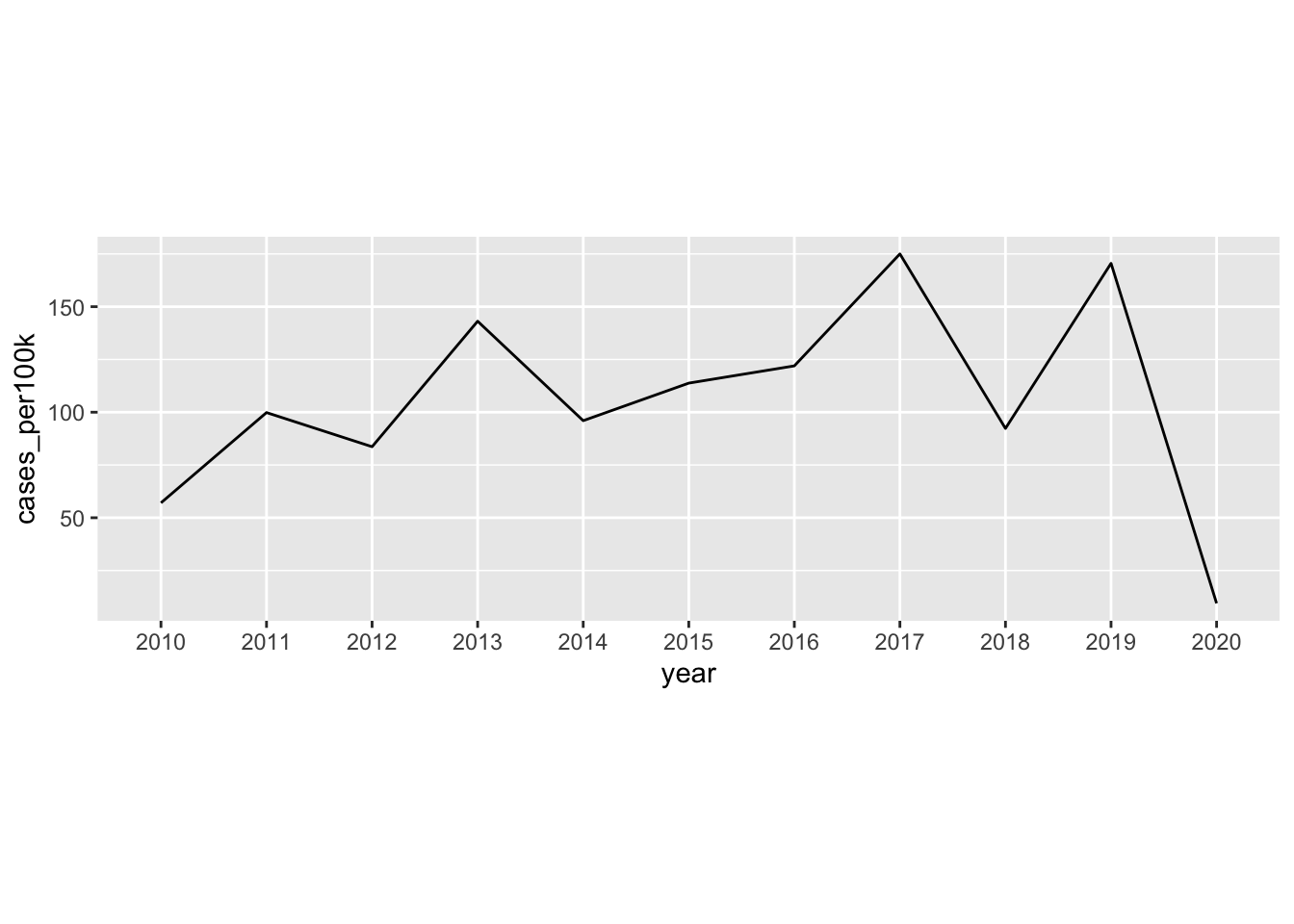

# default aspect ratio (with added tick marks) ----
lyme_pop |>
  filter(state == "Vermont") |>
  ggplot(aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  scale_y_continuous(breaks = seq(0, 190, by = 1))

  • we can fix the aspect ratio of our plot (i.e. height of one y-unit is equal to the width of one x-unit)
  • ratio is expressed as y / x and is set to 1 by default (see grid lines)
# fixed aspect ratio ----
lyme_pop |>
  filter(state == "Vermont") |>
  ggplot(aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  scale_y_continuous(breaks = seq(0, 190, by = 1)) +
  coord_fixed(ratio = 1)

  • we can adjust the aspect ratio by updating the value supplied to the ratio argument:
    • ratios > 1: units on the y-axis longer than units on the x-axis (resulting in steeper slopes)
    • ratios < 1: units on the x-axis longer than units on the y-axis (resulting in shallower slopes)
# adjusted aspect ratio ----
lyme_pop |>
  filter(state == "Vermont") |>
  ggplot(aes(x = year, y = cases_per100k, group = state)) +
  geom_line() +
  coord_fixed(ratio = 1/50)

Area charts

  • similar to line chart; indicates change in a numeric variable through time, but the space between x-axis and line is shaded in

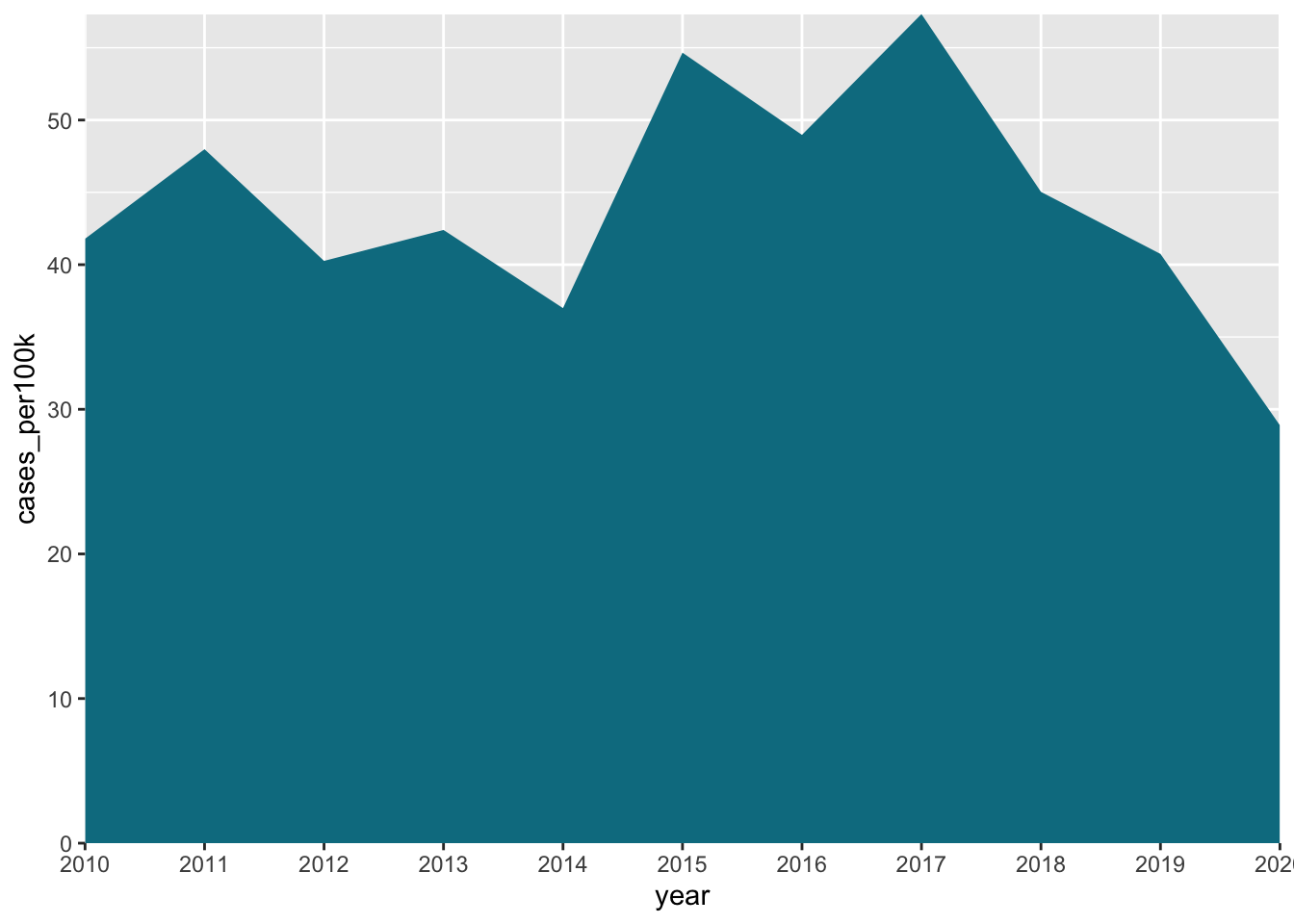

# area chart of lyme disease incidence in NJ ----
lyme_pop |>
  filter(state == "New Jersey") |>
  ggplot(aes(x = year, y = cases_per100k, group = state, fill = state)) +
  geom_area() +
  scale_fill_manual(values = c("#047C90")) +
  scale_x_discrete(expand = c(0, NA)) +
  scale_y_continuous(expand = c(0, NA)) +
  theme(legend.position = "none")

Alternative: stacked area charts

  • show evolution of the whole + relative proportions of each group
# stacked area chart ----

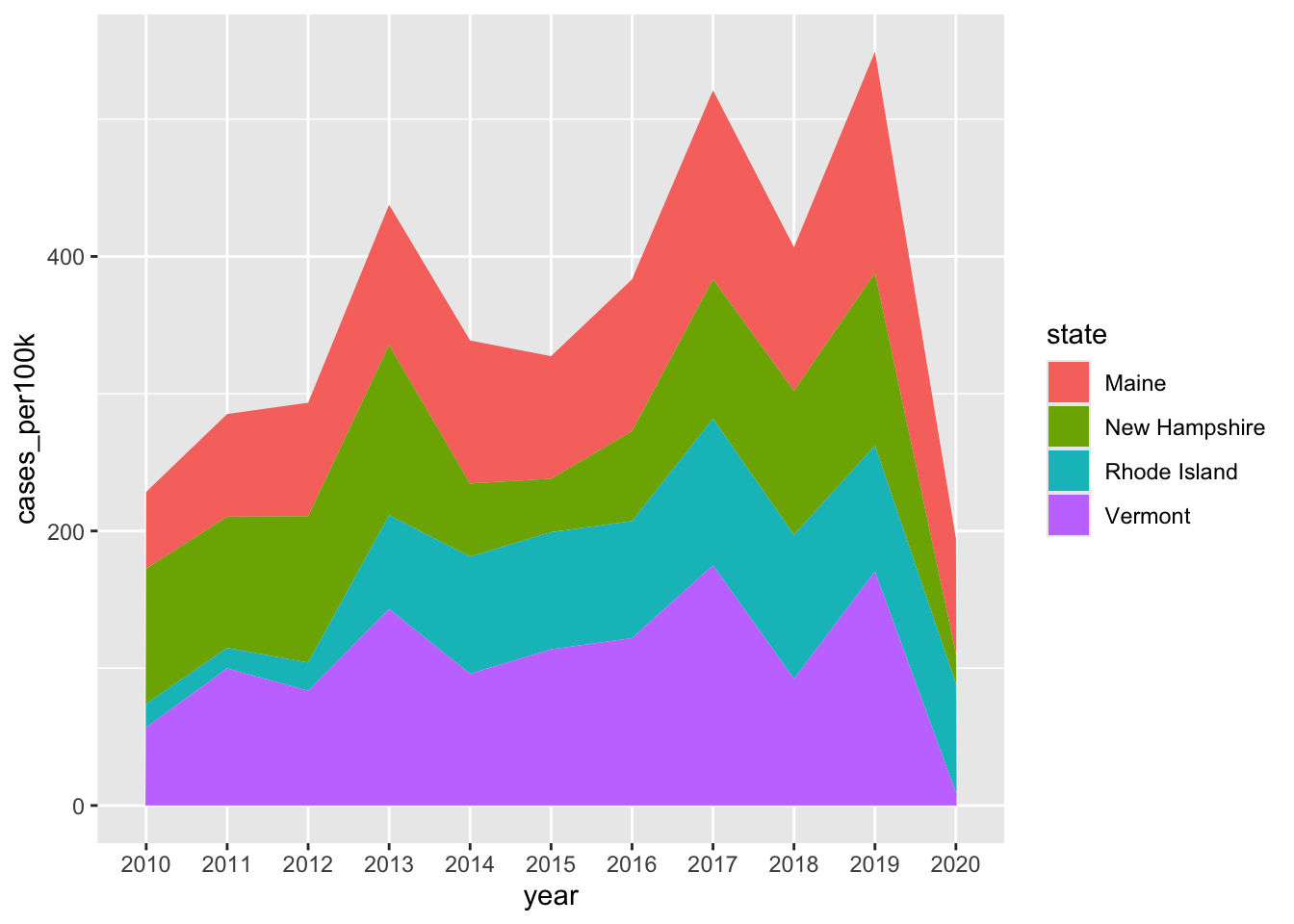

lyme_pop |>
  filter(state %in% c("Maine", "Rhode Island", "New Hampshire", "Vermont")) |>
  ggplot(aes(x = year, y = cases_per100k, group = state, fill = state)) +
  geom_area()

Alternative: proportional stacked area chart

  • plot percentage contributions rather than absolute numbers on y-axis

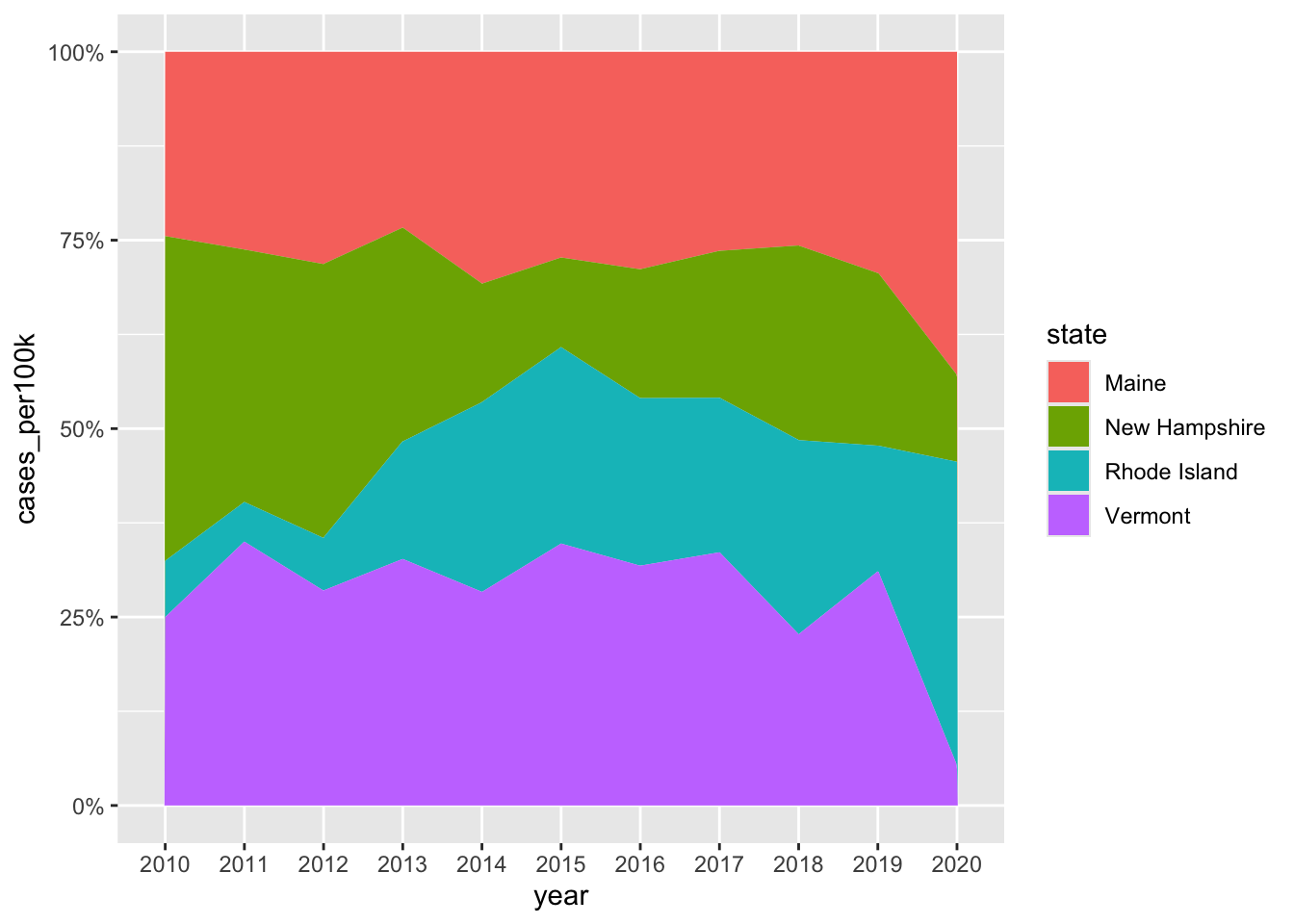

# proportional stacked area chart ----
lyme_pop |>
  filter(state %in% c("Maine", "Rhode Island", "New Hampshire", "Vermont")) |>
  ggplot(aes(x = year, y = cases_per100k, group = state, fill = state)) +
  geom_area(position = "fill") +
  scale_y_continuous(labels = scales::label_percent(scale = 100))

Note 1: stacked area charts aren’t great for looking at evolution of individual groups

  • the stacked area chart and faceted line graph both show the same data
# stacked area chart ----
lyme_pop |>
  filter(state %in% c("Maine", "Rhode Island", "New Hampshire", "Vermont")) |>
  ggplot(aes(x = year, y = cases_per100k, group = state, fill = state)) +
  geom_area()

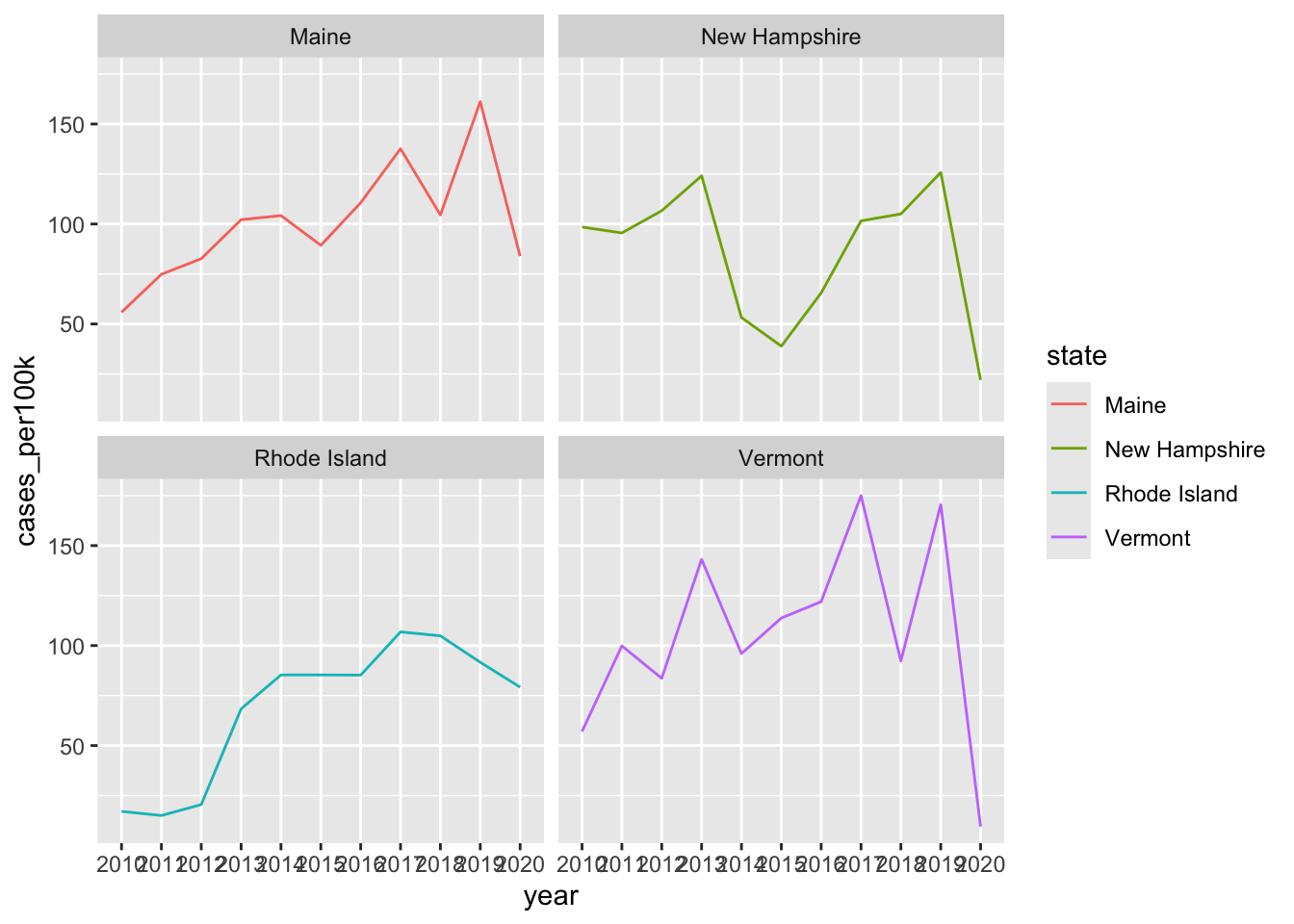

# same data, but as a line chart & faceted by state ----
lyme_pop |>
  filter(state %in% c("Maine", "Rhode Island", "New Hampshire", "Vermont")) |>
  ggplot(aes(x = year, y = cases_per100k, group = state, color = state)) +
  geom_line() +
  facet_wrap(~state)
